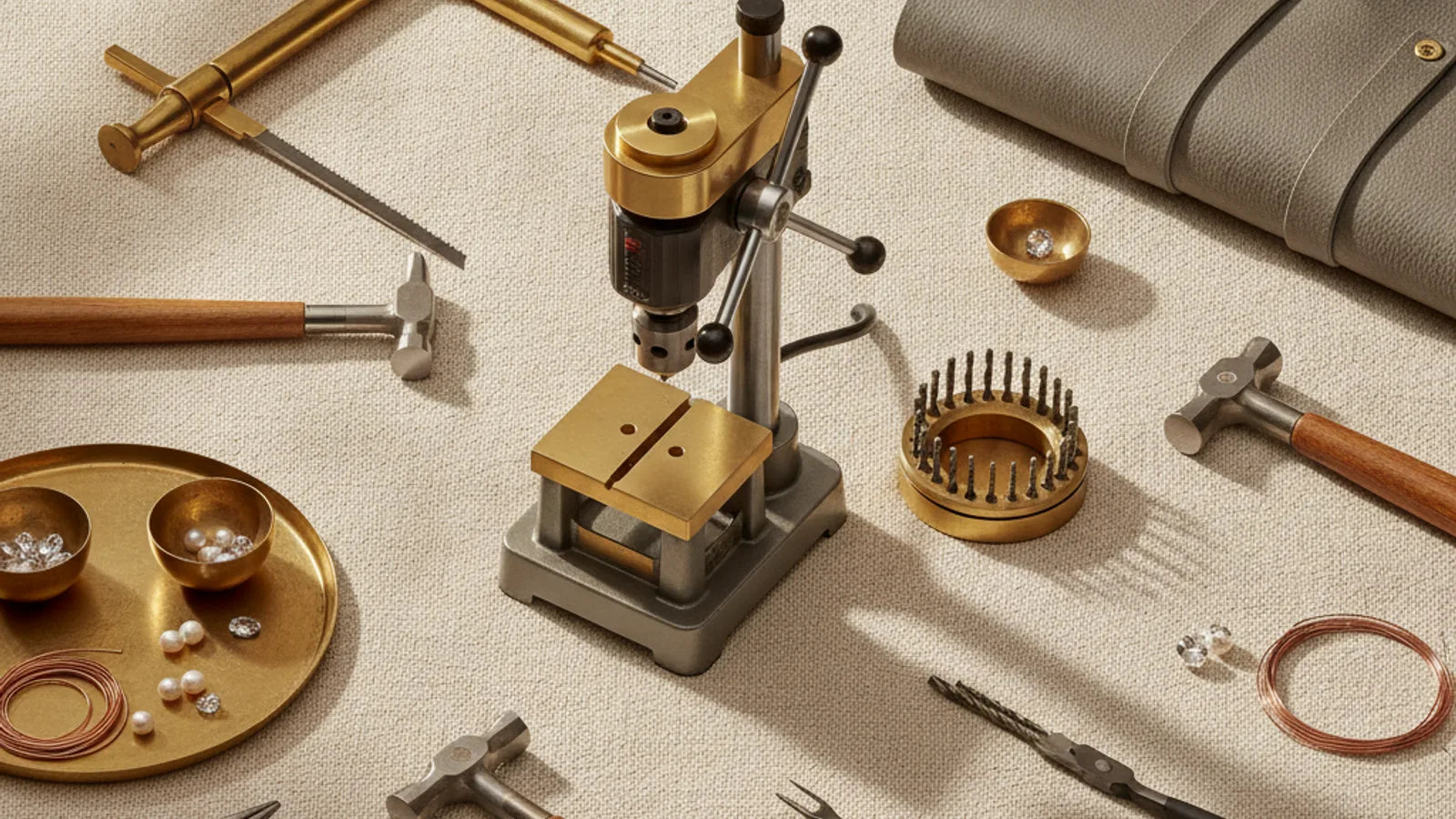

A benchtop drill press is a small but mighty tool for jewellers needing repeatable accuracy. Learn what specs truly matter to ensure precise hole placement on your precious metals.
For the working bench jeweller, precision is paramount. Whether you're setting stones, preparing for soldering, or creating intricate components, the ability to drill perfectly placed holes is fundamental. This article dives into the key considerations when choosing a benchtop drill press, moving beyond vague marketing terms to focus on the practical specifications that will benefit your daily work. By the end, you'll understand how to select a drill press that offers the accuracy and reliability required for consistent, professional results in your jewellery making.
Chuck range — 0.5mm-6mm
The drill chuck is your primary interface with the workpiece, and its range dictates the smallest and largest drill bits you can reliably use. For jewellery, a chuck that accepts bits from 0.5mm up to 6mm is ideal. Smaller bits, often down to 0.3mm or 0.4mm, are essential for delicate work, piercing, or preparing tiny holes for settings. A 0.5mm minimum is acceptable if you plan to use a separate pin vice for the absolute smallest drills, but a wider built-in range saves time and fiddling. On the upper end, 6mm is more than sufficient for most jewellery applications, easily accommodating bits for jump rings or larger wire connections. Avoid chucks that stop at 10mm or more; they often indicate a less precise mechanism for the smaller sizes crucial to our craft. Look for a keyed chuck for maximum grip, ensuring the bit doesn't slip under load, which can ruin a piece and be dangerous. A well-balanced chuck that spins true is key to accurate drilling. We'd recommend looking for a drill press with a chuck that feels solid and tight, without excessive play when you open and close it. This is where you'll find a good selection of drill bits to match your chuck: drill bits and burrs.
Run-out specs that actually matter
Run-out is the wobble in the drill bit as it spins. In jewellery making, even a tiny amount of run-out can turn a precisely marked hole into an oval or an off-centre disaster. While manufacturers rarely advertise precise run-out figures for benchtop models, you can infer quality by looking at the overall build. A heavier, more robust column and base generally suggest better stability and less susceptibility to vibration, which exacerbates run-out. The spindle itself should feel smooth and solid, with no noticeable play when you try to move it up and down or side-to-side. A common benchmark for good quality drill presses is a run-out of less than 0.05mm. For jewellery, aiming for closer to 0.02mm or less is preferable. This level of precision ensures that when your bit is centred on your mark, it stays centred as it enters the metal. If you can test a drill press before buying, gently spin the chuck by hand and observe the tip of a set of calipers or a thin rod inserted into the chuck. Any visible wobble is a red flag. Poor run-out is particularly problematic when drilling small holes or working with softer metals like silver, where a slight deviation can be very apparent. It’s a detail that separates professional results from amateur attempts.
Speed range and motor torque
The speed at which you drill is critical for bit longevity and the quality of the hole. For jewellery metals like silver, gold, and brass, you generally want higher speeds for smaller drill bits and lower speeds for larger ones. A drill press with a variable speed control, ideally offering a range from around 500 RPM up to 2500 RPM or higher, provides the most flexibility. Belt-driven systems with multiple pulley positions are common and effective for achieving a range of speeds. Look for a motor that offers sufficient torque, even at lower speeds. Torque is the rotational force, and it prevents the drill from bogging down when it encounters resistance, such as when a drill bit starts to bind or when drilling through thicker material. A motor in the 1/4 HP to 1/2 HP range is usually adequate for benchtop jewellery applications. A drill press that feels underpowered will struggle, leading to heat build-up, premature bit wear, and potentially damaged workpieces. The ability to adjust speed precisely allows you to match the drill bit diameter and the metal type to the optimal cutting speed, preventing overheating and ensuring clean cuts. This is especially important when working with softer metals like gold, where excessive heat can lead to burring or even melting.
Footprint vs swing depth
Space on a jeweller's bench is often at a premium, so the footprint of your drill press is a practical consideration. However, don't sacrifice essential functionality for a smaller footprint. The 'swing depth' (or working distance) is the distance from the centre of the drill bit to the main column of the drill press. This measurement dictates the largest diameter piece you can drill into. For jewellery, a swing depth of at least 100mm is generally recommended. This allows you to comfortably drill holes in the centre of rings, larger pendants, or components that are wider than a standard ruler. A smaller swing depth might force you to position your workpiece awkwardly, potentially compromising accuracy or even making certain tasks impossible. Consider the types of projects you undertake most frequently. If you regularly work with larger pieces, a greater swing depth is non-negotiable. While a compact drill press might seem appealing for its size, ensure it can accommodate the majority of your typical workpieces without compromise. A balance between a manageable footprint and adequate swing depth is key to a functional bench setup. This is crucial for tasks like drilling holes for jump rings on larger components, a process that benefits from ample clearance.
Bit selection for silver vs gold vs brass
Choosing the right drill bit for the metal you're working with is as important as the drill press itself. For silver, gold, and brass, you'll want high-speed steel (HSS) or carbide-tipped drill bits. HSS bits are a good all-around choice for most jewellery metals. They are relatively inexpensive and can be kept sharp. For harder metals or when needing extreme precision and longevity, carbide bits are superior. They are harder and hold an edge longer but are also more brittle and significantly more expensive. When drilling silver, which is relatively soft, use a faster drill speed and lighter pressure. For gold, especially harder alloys, a slightly slower speed and consistent pressure are beneficial to prevent overheating and galling. Brass sits somewhere in between; it can be drilled effectively with standard HSS bits. Always use a cutting lubricant or wax when drilling metal, especially silver and gold, to reduce friction, prevent the bit from binding, and ensure a clean hole. This also extends the life of your drill bits. A good set of small HSS drill bits, ranging from 0.5mm to 3mm, will cover a vast majority of your jewellery drilling needs. For larger holes, consider using a step drill bit, which can create a range of hole sizes with a single bit, or use a hole saw for very large diameters. Proper bit selection is key to achieving the clean, precise holes needed for tasks like preparing for jump rings or creating settings, and is fundamental to good soldering practice.
Next at the bench
Mastering the benchtop drill press is a significant step towards greater precision in your jewellery making. For further exploration into essential bench tools and techniques, consider our guides on jeweller's hammers and the importance of accurate mandrels and sizing tools. Precision drilling complements precise forming and finishing.
