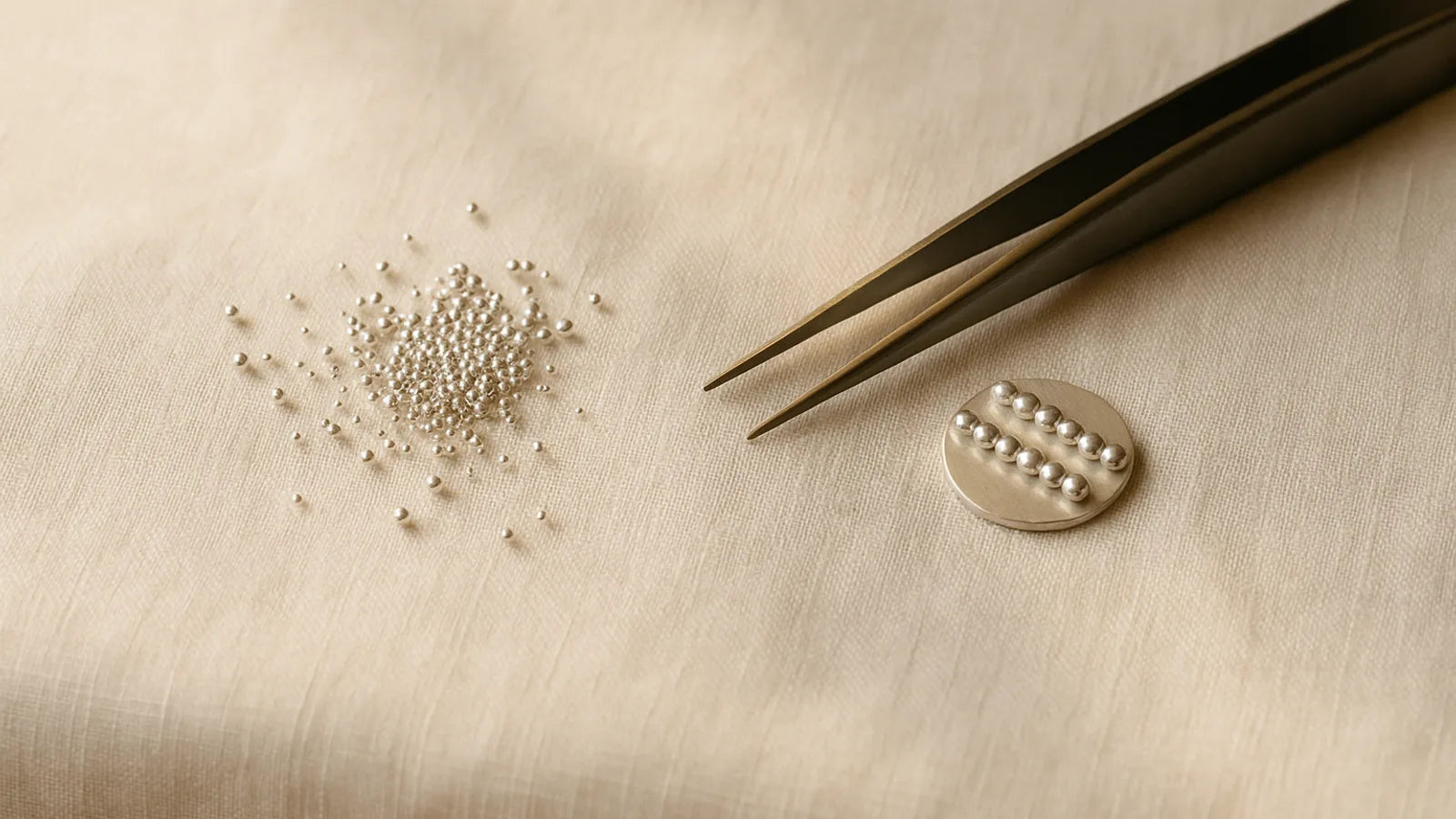

Granulation is the art of decorating metal with tiny fused spheres — no solder, just heat and patience. Etruscan goldsmiths mastered it nearly three thousand years ago, and the physics has not changed since. Here is how to try it in fine silver at a home bench, from making your first granules to the fusing flash.
What granulation actually is
Look closely at Etruscan gold work in a museum case and you will see borders, spirals and whole surfaces built from spheres smaller than poppy seeds. Nothing is soldered. Each granule is fused: sphere and base are brought to the point where their surfaces just begin to melt, and they weld where they touch. There is no fillet of solder to clean up and no colour mismatch, because the joint is the metal itself.
If you have read our piece on reticulation, this is the same phenomenon under tighter control. Reticulation lets a molten skin wrinkle where it likes; granulation asks that skin to grab a sphere and then stop. The margin between fused and melted is a few seconds of torch time, which is why the technique has a fearsome reputation. It is also entirely learnable.
Making your granules
Granules are scraps of fine silver melted until surface tension pulls them into balls. Snip clean fine-silver wire or sheet offcuts into even lengths — evenness matters, because equal snippets make equal spheres. Space them out on a charcoal block, ideally in shallow divots pressed into the surface, so each snippet has a hollow to ball up in.
Bring a neutral flame down gently and each piece will draw itself into a bright, spinning sphere. Let them cool before tipping them into a jar. If snipping bores you, melt fine-silver casting grain into smaller spheres instead; grain gives a consistent starting weight for almost no effort.
Sort the results before you design anything. A nest of fine sieves, or a piece of card folded into a groove and tilted, separates large from small quickly. Uniform rows read as deliberate; mixed sizes read as spilled sugar.
Why fine silver fuses best
Sterling is 92.5 per cent silver and 7.5 per cent copper, and the copper is the problem. At fusing temperature it oxidises rapidly, and that dark oxide sits exactly where you need bare metal to meet bare metal. Fine silver has no copper to oxidise, which is why it fuses so cleanly — the same reason it is the preferred ground for keum-boo.
You can granulate on sterling, but only after raising a skin of fine silver by depletion gilding: anneal, pickle and repeat until the surface stays matte white. Our guides to annealing and forging silver and setting up a pickle bath cover both halves of that cycle. For a first attempt, buy a small offcut of fine-silver sheet and remove the variable entirely.
Placing granules without losing your mind
Prepare the base as you would for soldering: freshly pickled, rinsed and untouched by fingertips. Granules settle best where the design gives them a home — a scribed line, a shallow groove, or the inside of a stamped border. A simple frame struck with tools from our punches & stamps collection gives a granulated panel a crisp boundary and stops strays wandering off the edge.
To hold each sphere in place, mix a tiny amount of flux with a trace of gum — gum tragacanth is traditional; a thinned paste flux also works. Pick up each granule with proper fine-point tweezers — serrated jaws grip a sphere far better than smooth ones — touch it to the flux mix and set it down. A titanium soldering pick is ideal for nudging the last granule into line, because molten flux does not stick to titanium. Then let everything dry completely. Wet gum boils under the torch and will flick granules across the bench.
The fusing moment
Set the work on a soldering block and warm the whole piece with a soft, bushy flame, keeping it moving. Our guide to choosing a soldering torch explains which torches give that broad, gentle heat. The gum will char, the flux will glaze, and the silver will climb through dull red towards orange.
Then comes the flash: the surface shimmers liquid-bright for an instant, as if water swept across it. The moment you see it, lift the torch away. That shimmer is the surface melting; one second more and your crisp spheres slump into blobs. Air-cool briefly, then pickle, rinse and test each granule gently with a pick.
Torch work earns respect: wear eye protection, tie back hair and loose sleeves, clear the bench of anything flammable, and treat every tool and every piece as hot until proven otherwise. A long pair of heavy-duty soldering tweezers keeps your hand well away from the flame when moving work on and off the block.
When it goes wrong — and it will
Granules roll out of position: too much binder, a base that is not level, or heat applied to one side so the flux boiled. Use less adhesive than seems sensible and warm the piece evenly from the start.
Granules melt into blobs: you overshot the flash. Nothing is truly lost — re-melt the silver into fresh granules and go again.
Granules drop off in the pickle: they were glued, never fused, because the piece never quite reached temperature. Re-flux, re-place and hold your nerve one second longer.
Granulation needs very little kit — tweezers, a pick, a torch and a block — so practise on scrap discs until the flash is something you recognise rather than fear.
Building the placing kit? Start in our tweezers & soldering collection — in granulation, precise handling is half the technique.
