A ring with one seam forgives almost anything. A box with a hinge, a bail and four joins does not — every new join risks reflowing the last. The cure is not faster hands; it is a plan: stage your heat, grade your solder, and protect the work you have already done.
Plan the joins before you light the torch
Silver solder comes in graded melting points — hard, medium and easy, with extra-easy below them — and the entire point of the grades is sequencing. Hard flows highest; each step down flows some thirty to fifty degrees cooler. Make your first joins in hard and each later join in a cooler grade, and the earlier seams never again reach the temperature at which they would open.
So before anything meets flame, count the joins and write the order down: structural seams first in hard, mid-build joins in medium, small final attachments in easy. If the build has more joins than grades, reuse one — a seam that has flowed will not reflow until it is brought all the way back to full flow temperature, and with controlled heat that margin is enough. Our rundown of flux, solder & firebricks covers the grades worth keeping in the drawer.
Heat the piece, not the solder
The commonest failure on a large assembly is aiming a small, hot flame at the solder itself. The pallion balls up, sits on cold metal and goes nowhere, while the spot beneath it scorches. Solder follows heat: it flows only when the metal on both sides of the seam reaches temperature, and it runs toward the hotter side.
So warm the whole piece with a broad, bushy flame, keep the torch moving, and close in on the seam only for the last few seconds. On a heavy piece this takes longer than feels natural; be patient rather than hotter, and size the flame to the job — our guide to the best soldering torch for jewellery explains why a soft, generous flame beats a pinpoint for silver. Lingering too long is how sterling earns firestain and pitted seams; the habits in soldering sterling without pitting matter four times over when a piece meets the flame four times.
Heat sinks, ochre and other insurance
Once a seam is finished, defend it. Steel is the first defence: cross-lock tweezers clamped beside an earlier join wick heat away and hold that corner below flow temperature while you work elsewhere. The stainless cross-locks and fibre-grip pairs in our 8-piece soldering tweezers kit are made for the job, and a twist of wet tissue does the same for corners no tweezer can reach. Heat-sensitive stones should come out of the piece before soldering wherever the setting allows; a wet wrap is a last resort, not a plan.
The second defence is yellow ochre, or a bottled anti-flux. Painted over a finished seam and left to dry, it blocks flux and discourages old solder from flowing even if that corner runs hotter than intended. Keep it far from the seam you are about to make — ochre where you want flow is as bad as flux where you do not — and give it its own brush. Scrub every trace off before the piece goes near the pickle: ochre is an iron oxide, and iron in the pickle will copper-plate everything in the pot.
Holding the awkward assembly

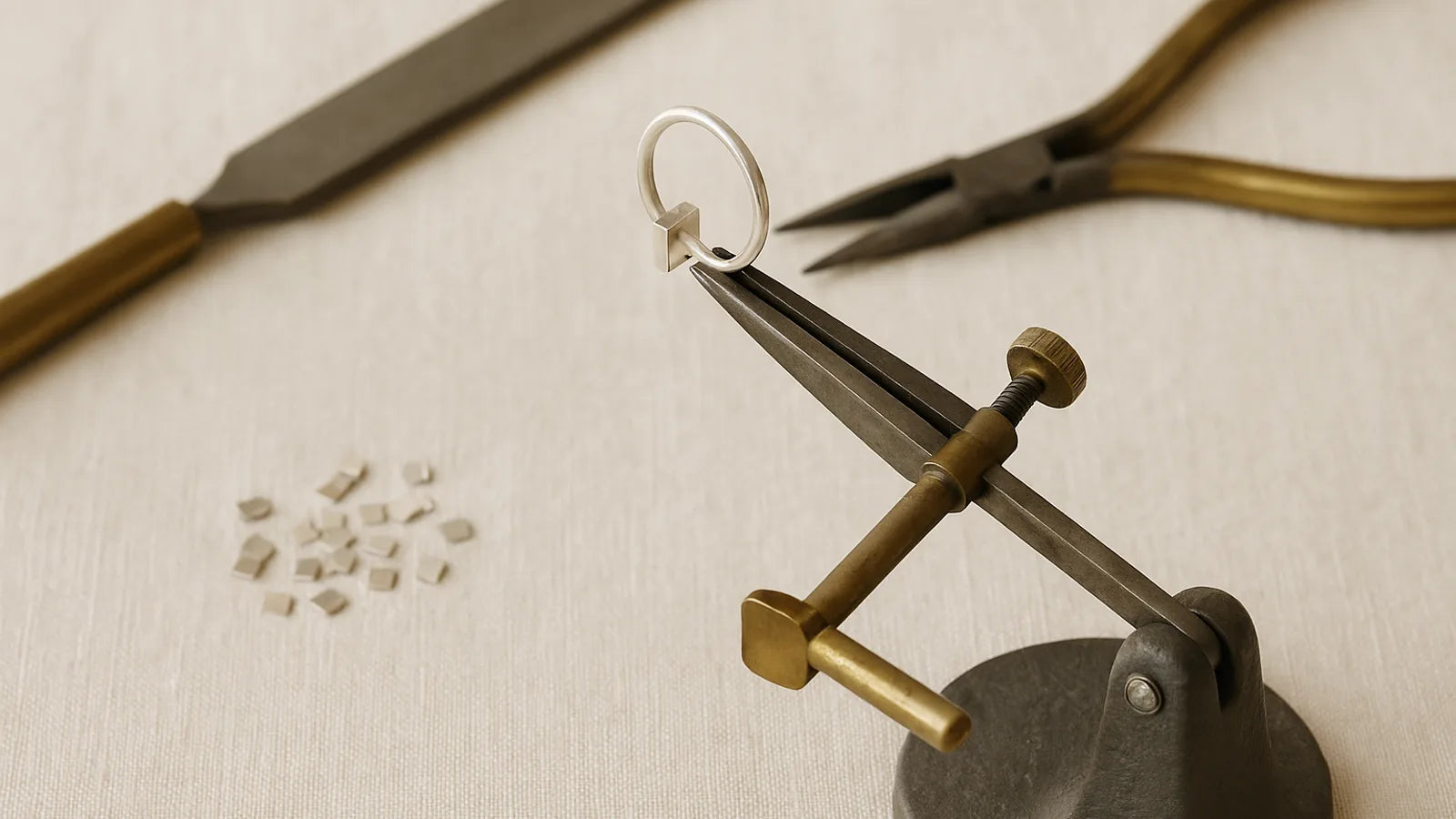

Complex pieces rarely sit flat on a block. A third hand lets you rest a bail against a curved lid, or hold a length of chenier upright, and keep it there while your real hands manage torch and pick. A heavy-duty third hand with a double clamp holds two elements in one fixture, which is precisely what staged work needs. Set its tweezers to grip lightly and well away from the join: a heavy clamp hard against a seam is a heat sink exactly where you least want one, and the joint will struggle to reach temperature.
Where clamps cannot reach, pin parts to the soldering block with steel pins, or bind a lid to a body with soft iron binding wire — snug, not strangled, so the metal can expand without shifting. Every scrap of iron must come off before pickling, for the same copper-plating reason as the ochre. For arranging bricks, blocks and arms so nothing teeters mid-solder, see setting up a hands-free soldering station, and browse the tweezers & soldering collection for the hardware.
When a join opens anyway
It happens to everyone, and the rescues are calm ones. If a pallion balls up and refuses to run, stop chasing it with the flame; bring the seam back to temperature and press the ball gently home with a titanium pick — solder will not stick to titanium, which is why a titanium soldering pick set lives beside the torch here. If a part shifts as the solder flows, let everything cool before you touch it: re-flux, reposition, re-stage. Nudging hot metal by eye almost always lands it somewhere worse.
If an earlier seam slumps open, do not flood it with fresh solder while it gapes. Cool the piece, clean it, ochre the neighbouring seams, and repair with a grade below the original. And keep count of firings: every full reheat gives oxygen another go at the alloy, so three deliberate firings beat six hasty ones.
A worked example: box, hinge and bail in four joins
Here is the plan applied — a small silver box with a hinged lid and a bail. Join one, the body seam, in hard: the cylinder heated evenly all round. Join two, the base, in hard again: ochre dried on the body seam, heat coming mostly from below, the piece given time. Join three, the hinge knuckles, in medium: chenier is thin-walled and overheats in a blink, so the flame stays soft and cross-locks sit on the lid as heat sinks — our primer on tube hinges & chenier covers cutting and fitting the knuckles themselves. Join four, the bail, in easy: the box held in the third hand, and only the bail's footprint brought up to heat.
Pickle, rinse, and walk a loupe along every seam before the hinge pin goes in. Four joins, three grades, one unhurried afternoon — and nothing undone.
Steady steel hands make staged work possible — find cross-locks, picks and third hands in our tweezers & soldering collection.
