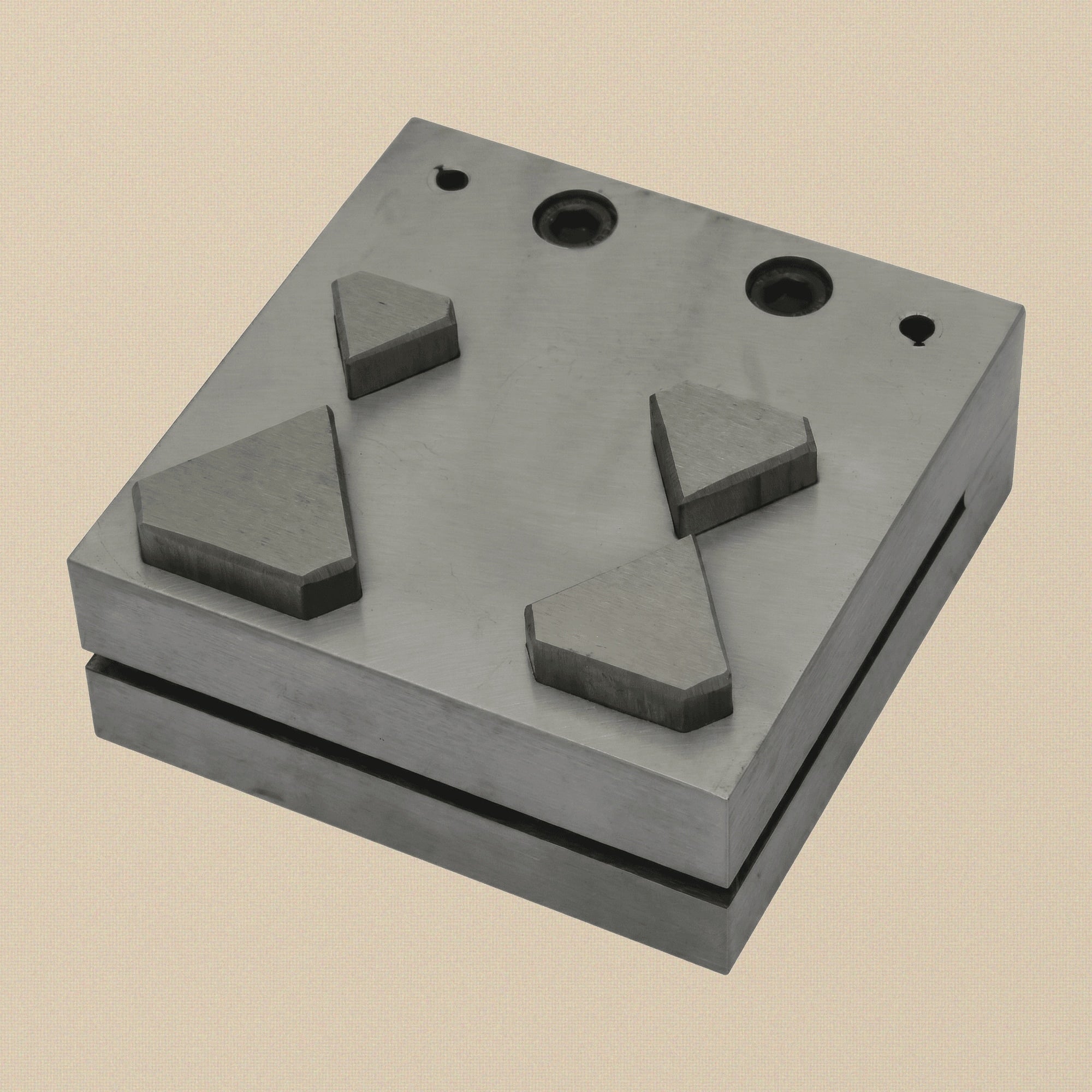

Blank Punch & Die Set — Diamond Shape, 4 Steel Punches, 13-29 mm, Jewellery Making

Diamond blanks in four sizes — 28.92 × 25.61 mm, 24.79 × 21.95 mm, 20.66 × 18.20 mm and 13.53 × 14.00 mm — sheared from sheet one strike at a time. Cut them as pendants, charms and earring components, as inlay pieces for mixed-media work, or as uniform bases for stamping and enamelling.

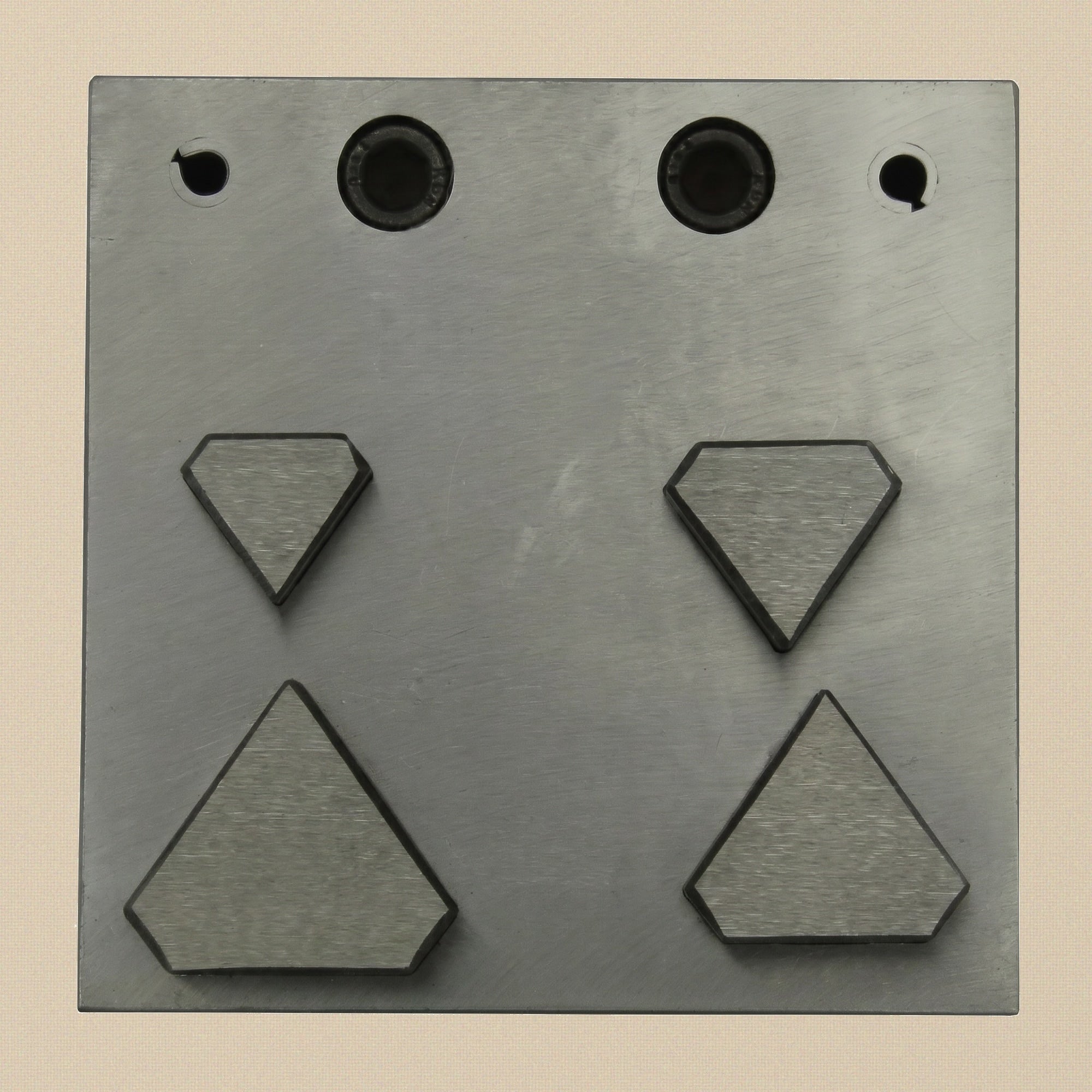

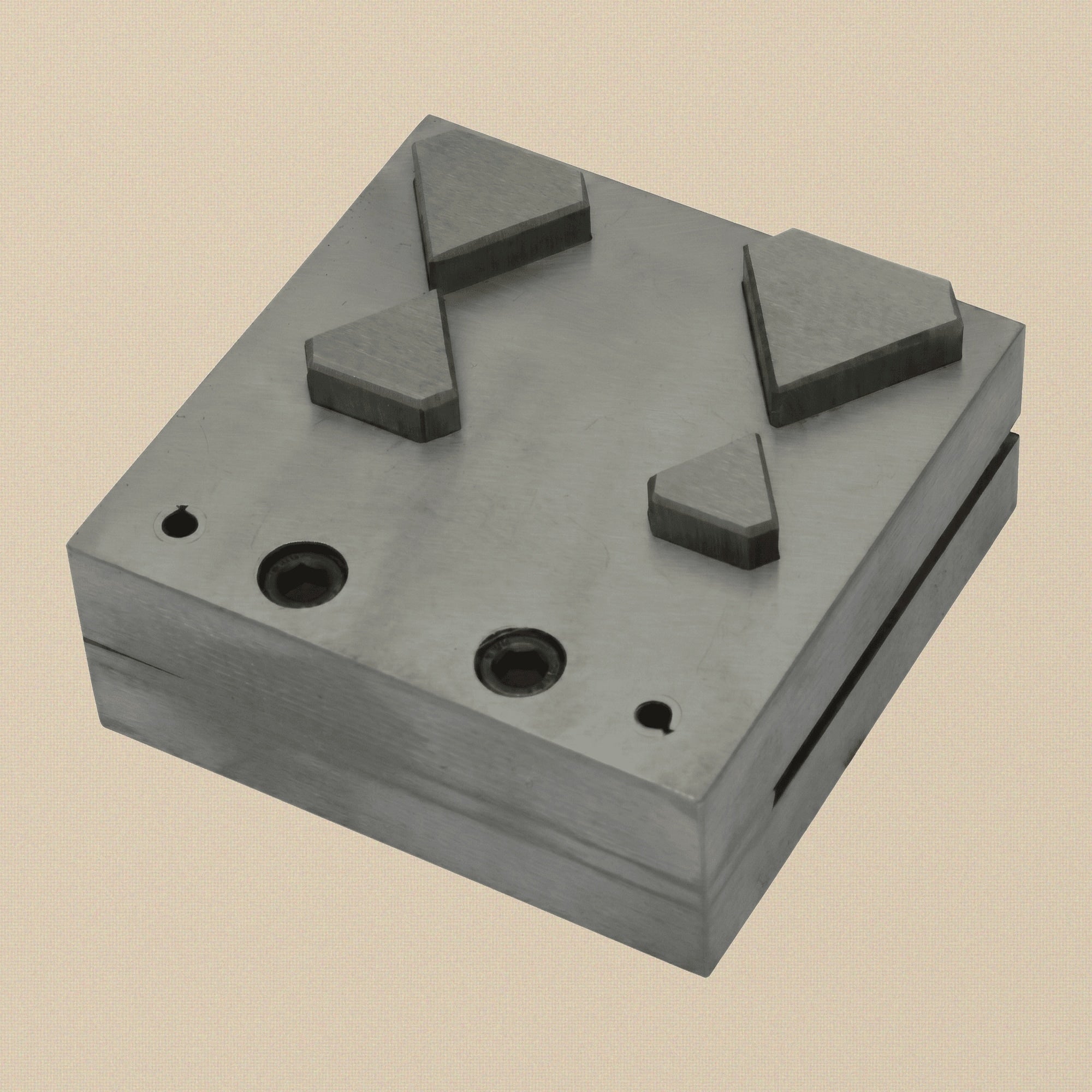

Die block and punches are hardened carbon tool steel; the compact 76 × 76 mm block tucks onto a crowded bench without giving up stability. Punches are ground sharp at the business end and bevelled for the mallet at the other. Brass or nylon mallet, non-ferrous sheet to 18 gauge (1.02 mm), a drop of cutting lubricant — that is the whole routine.

• Fabricating diamond-shaped pendants, charms, and earring components.
• Creating custom inlay pieces for metalwork or mixed-media projects.
• Producing uniform blanks for subsequent stamping or enamelling work.

• Cuts four distinct diamond shapes from non-ferrous sheet up to 18 gauge (1.02 mm).
• Includes punch sizes (approx): 29x26mm, 25x22mm, 21x18mm, and 14x14mm.
• Punches and die block are machined from hardened carbon tool steel for clean cuts.
• Compact 76 x 76 mm (3 x 3 inch) die block fits easily on a jeweller's bench.
• Punches are ground sharp on the cutting end and bevelled on the striking end.
